At a glance

Paints in who­le­sale

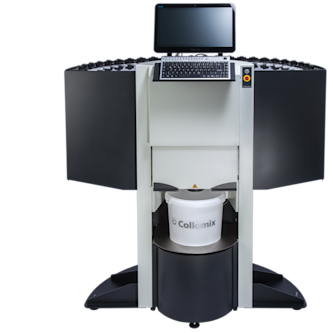

TINTA colordis­penser



  • tin­tONE - sel­f-­con­tai­ned paste recir­cu­la­tion sys­tem
  • cool­NOZ - Dew point tech­no­logy
  • move­NOZ - mova­ble dosing head
  • lidDE­TEC­TION - auto­ma­tic cover moni­to­ring
  • Fill level moni­to­ring
  • Simul­ta­neous dosing of several colo­r­ants

The perfect supplement for Collomix shakers and gyroscopic mixers

The quantum leap in dispenser technology: The new, trendsetting dispenser generation from Collomix – outstanding innovations regarding to efficiency, precision, reliability and operating comfort.


Article number Product Circuits / Housing options Dosing flow Dosing speed Pumps Valves Min. dosing quantity
31100 TINTA 16 Flexible 1 - 16 Simultaneous 180 ml/min 3 oz. Piston Pumps Caramic butterfly valves 1/768 fl. oz. (0.04 ml)
31110 TINTA 24 Flexible 1 - 24 Simultaneous 180 ml/min 3 oz. pistion pumps ceramic butterfly valves 1/768 fl. oz. (0.04 ml)
31120 TINTA 32 flexible 1 - 32 Simultaneous 180 ml/min 3 oz. piston pumps Caramic butterfly valves 1/768 fl. oz. (0.04 ml)
tinta-zubehoer-tintone-kanister tintONE 2.5 litre canister - AQUA
Article number: 75000
tintONE paste canister for water-soluble pastes Volume: 2.5 litres Limited suitability for solvent-containing pastes. Supply of a fully assembled unit
tinta-zubehoer-tintone-kanister tintONE 2.5 litre canister - AQUA vibro
Article number: 750017
tintONE paste canister for water-soluble and thixotropic colourants Same as Art. No. 75000, however incl. vibroPAD
tinta-zubehoer-tintone-kanister tintONE 2.5 litre canister dummy
Article number: 75019
tintONE colourant canister as a non-functioning place holder Volume: 2.5 litres

tinta-zubehoer-tintone-kanister tintONE 2.5 litre canister refurbished
Article number: 75046
tintONE colourant canister as a refurbished unit Equipment identical to Art. No. 75000, Only available as a spare part

Laser indicator
Article number: 75001
Visual assistance for the central positioning of small paint containers and test containers with laser technology

tinta-zubehoer-kleingebindeauszug Small paint container Extract
Article number: 75021
Positioning of small paint containers and sample pots directly under the nozzle head; Can be retracted and extended as required

tinta-zubehoer-PC-Halterung Holding device for external PC
Article number: 75037
Fastening to the base of the machine

tinta-zubehoer-ablage Printer or mouse shelf
Article number: 65309
Single-sided; Can be fitted on the left or right

tinta-zubehoer-ablageflaeche-drucker Shelf surface for printer peripherals
Article number: 75054
Attached to the front on the left or right; Includes magnetic fixing; e.g. for label printer

tinta-zubehoer-monitorhalter Monitor holder
Article number: 75055
Can be swivelled; Angle of inclination ca be adjusted; Includes VESA bracket

tinta-zubehoer-monitorhalter-touch \\Touch\\ monitor bracket
Article number: 75056
Permanently attached to TINTA front; Can be swivelled; Especially suitable for touch screen monitors; Without additional keyboard

tinta-zubehoer-befuellterminal Filling terminal
Article number: 75022
Filling tool for easy attachment of the disposable funnel

tinta-zubehoer-trichterhalter Funnel holder
Article number: 75023
Magazine for storage of the disposable funnel.

tinta-zubehoer-einwegtrichter Disposable funnel
Article number: 75032
Filling funnel for clean canister filling

Gyroscopic mixer BIAX 45 / 45 S



  • Short mixing times
  • Highly smooth ope­ra­tion
  • Exten­di­ble clam­ping plate
  • Space-­sa­ving with two-parts sli­ding door
  • Highly care­ful hand­ling of con­tai­ners during mixing
  • tex­t-gb
  • Exten­di­ble with Tinta dis­pen­sers
Max. mixing weight:
50
 kg
Rec. continuous mixing weight:
35
 kg
Container height:
120‍-‍450
 mm

Industrial-level mixing. The BIAX 45/45 S gyroscopic mixer features a high mixing volume, short mixing times (also in continuous operation), even in multi-shift operation. The Biax 45/45S provides maximum output at mixing volumes of up to 50 kg, even with highly viscous materials. Reinforced technology with a strong drive unit and robust mixing unit for reliable and effective operation.

colloconsult index biax 45 / 45 s



Automotive paints / Car refinish paints

Car paints simply and perfectly mixed. No need to mix by hand.

➡︎ Learn more

Article number Product Max. container diameter Motor output Max. speed Door option Loading type
35030 Biax 45 365 mm 1,5 kW 160 rpm manual sliding door Manual pull-out clamping plate
35031 BIAX 45 S 365 mm 1,5 kW 160 rpm Sutomatic sliding door Automatic pull-out clamping plate

Gyroscopic mixer BIAX 45 P



  • Relia­ble mixing unit
  • Highly smooth ope­ra­tion
  • Highly care­ful hand­ling of con­tai­ners during mixing
  • Highly care­ful hand­ling of con­tai­ners during mixing
  • Power­ful drive unit
  • Fully auto­ma­ted sli­ding door
  • tex­t-gb
  • Auto­ma­tic hand­le-­fixa­ti­ons­sys­tem for fast loa­ding and unla­ding
  • Exten­di­ble with large dis­pen­ser equip­ment / TINTA dis­pen­sers
Max. mixing weight:
50
 kg
Rec. continuous mixing weight:
35
 kg
Container height:
130‍-‍445
 mm

Outstanding ergonomics in production operations. The Biax 45 P is designed especially for production operations in industry and paint wholesale, in conjunction with roller conveyor systems. Due to its powerful drive concept, the BIAX 45 P provides maximum output and short mixing times with mixing materials of up to 50 kg. Ergonomic and time-saving mixer loading thanks to a push & slide system that doesn’t strain the back.

colloconsult index biax 45 P


Article number Product Max. container diameter Motor output Max. speed Door option Loading type
35032 BIAX 45 P 365 mm 1,5 kW 140 rpm automatic sliding door Push & Slide (only with roller conveyer)
1200 mixer module
Article number: 72748-425
Available in several heights e.g.: h 425 - 430 mm
90° curved module
Article number: 61377
GLN: 4011024613776
Straight module
Article number: 72791
GLN: 4011024727916

Piètement supplémentaire
Article number: 61379
For straight module

Pied de mélangeur réglable Standard
Article number: 72707
For the adjustment of the mixing machine to the roller conveyor; Set for elevation of mixer for working heights by 430 – 510 mm

Pied de mélangeur réglable Individual
Article number: 72708
For the adjustment of the mixing machine to the roller conveyor; kit de surélévation de la machine pour un convoyeur d´une hauteur entre 510 - 530 mm

Base unit Standard
Article number: 61380-200
For the adjustment of the mixing machine to the roller conveyor; For working heights by 650 mm

Base unit Individual
Article number: 61380-120
For the adjustment of the mixing machine to the roller conveyor; For working heights by 650 mm

Gyroscopic mixer BIAX 35



  • Highly smooth ope­ra­tion
  • Relia­ble mixing unit
  • Space-­sa­ving with two-parts sli­ding door
  • Highly care­ful hand­ling of con­tai­ners during mixing
  • Easy access to all com­po­n­ents
  • Exten­di­ble with Tinta dis­pen­sers
Max. mixing weight:
40
 kg
Rec. continuous mixing weight:
35
 kg
Container height:
70‍-‍400
 mm

Classic robustness. The robust technology of the BIAX 35 biaxial mixer is particularly advantageous when using heavy containers. The BIAX 35 excels with smooth operation even at maximum rotational speed and mixing volume. The BIAX 35 offers utmost reliability for many years. Proven in practice 10,000 times over.

colloconsult index biax 35



Finishing Plaster / Decorative Plaster

Perfect colouring of finishing plasters / decorative plasters - directly in the specialist trade or in production.

➡︎ Learn more

Article number Product Max. container diameter Motor output Max. speed Door option Loading type
34210 BIAX 35 365 mm 1,1 kW 160 rpm Manual sliding door Manual extractable clamping plate

Gyroscopic mixer ROTA 400



  • Inte­gra­ted door
  • High mixing effi­ci­ency
  • Low noise emis­sion
  • Highly care­ful hand­ling of con­tai­ners during mixing
  • Easy access to all com­po­n­ents
  • Can be com­bi­ned with rol­ler con­veyors
  • Exten­di­ble with Tinta dis­pen­sers
Max. mixing weight:
40
 kg
Rec. continuous mixing weight:
30
 kg
Container height:
60‍-‍400
 mm

Maximum ergonomics meet splash protection design The ROTA 400 gyroscopic mixer features a unique patented protection mechanism that protects the drive and clamping components from contamination. Back-friendly feeding of the Rota 400 thanks to the innovative push & slide concept.

colloconsult index rota 400


Application video Paints in wholesale


Finishing Plaster / Decorative Plaster

Perfect colouring of finishing plasters / decorative plasters - directly in the specialist trade or in production.

➡︎ Learn more

Article number Product Max. container diameter Motor output Max. speed Door option Loading type
34410 ROTA 400 360 mm 1,1 kW 145 rpm automatic integral door Push & Slide incl. loading board
