Instal­la­tion of large format tiles for show­room

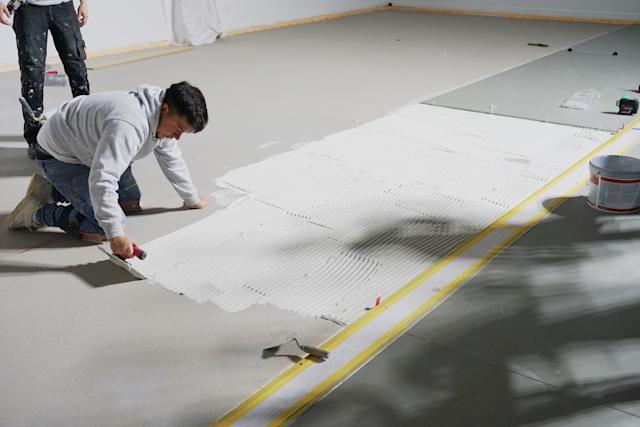

Kleberbett2 aufziehen Boden 300rgb 20cm

Large format tile installation continues to be a major challenge for tilers. A considered approach and practical experience are basic prerequisites for successful results. Gottschalk, the tiling company from Mühlhausen in Upper Palatinate, has gained a wealth of experience and reputation in large-format tiling in recent years and now works for many discerning customers who demand the highest standards when it comes to implementation and quality.

1,000 square metres and tiles in 320 x 160 cm format

In this particular case, the task was to tile a showroom with a total hall area of almost 1,000 square metres using tiles in 320 x 160 cm format. Neolith porcelain with a thickness of 12 mm was chosen as the covering material. The surface of these homogeneously sintered tiles is characterised by special strength, scratch resistance as well as bending resistance. With regard to the tile adhesive to be used, the task was to ensure it had a strength of an S-2 adhesive and, at the same time, would dry relatively quickly. In addition, the intention was to work with an extremely narrow joint width of 2 millimetres. Gottschalk was able to rely on the individual technical consultation provided by Schönox, who recommended a cement-based tile adhesive with a specially adapted mixing liquid that would ensure a crystalline setting of the adhesive under the tile and still fulfil S-2 properties.

AOX-S im Einsatz bei Verlegung von Großformatfliesen

For the mixing technology, Gottschalk put its trust in Collomix’s machines. A hand-mixer from the Xo model range was used to pre-mix the two components of the mixing liquid. The AOX-S automatic rotation mixer was used to mix the tile adhesive. This mixer operates with a higher speed of the KR mixing tool used, which – in the case of powdery materials – optimally ensures that the powder is broken down with the water. It was therefore possible to keep labour costs low during the mixing process, as the mixer operates independently and has an exchangeable mixing bucket. With a total adhesive quantity of over 7 tonnes of material, or close to 200 mixes for the entire surface, automatic mixing certainly paid off. Another factor in favour of using the machine was, of course, the quality of the adhesive to be mixed. Here, one mixture was just like the other – a perfectly workable, smooth adhesive without any lumps. Around 35 kg of tile adhesive was needed to lay one tile. A trolley was used to transport the ready-mixed material, with the trolley picking up the 65 litre bucket from the machine. Given the number of mixes and the size of the hall, the distances covered added up quite considerably and staff had to use their strength as sparingly as possible. In order to compensate for minor unevenness, the floor was laid using the buttering-floating method. The subfloor of the hall was also installed with great care by the previous trade which meant that the necessary height compensation was in a range of only a few millimetres. This could be compensated within a range of 5 - 10 mm by using different serrations when applying the adhesive.

Tile laying rethought

What makes laying tiles of this size really challenging is, of course, the transport and insertion of the tiles in the adhesive bed. For this purpose, Gottschalk developed its own transport and lifting system, which was used to move the 180 kilo tiles. With the aid of this construction, the tiles could be transported safely and fitted with millimetre precision. After all, a broken tile can have an extremely adverse effect on the calculation. In addition, only a joint width of 2 mm was planned for this design.

Verlegung von Großformatfliesen mit besonderer Konstruktion

All in all, the 5 Gottschalk employees impressively demonstrated their professional skills here and the expert and careful performance of the work once again ensure a satisfied client.

Einpassen einer Großformatfliese


Usage note: Our product recommendations are given according to the best of our knowledge and experience, but we cannot provide a guarantee for their correctness. Therefore, please always refer to the material manufacturer's notes in the technical data sheets and carefully check the suitability of the mixing tools and machines for the task at hand and in accordance with the notes and instructions in the operating instructions for the devices.
